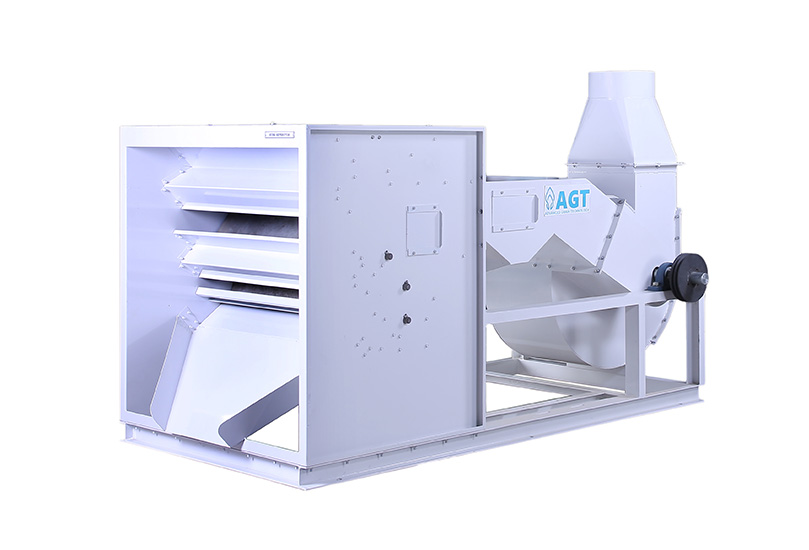

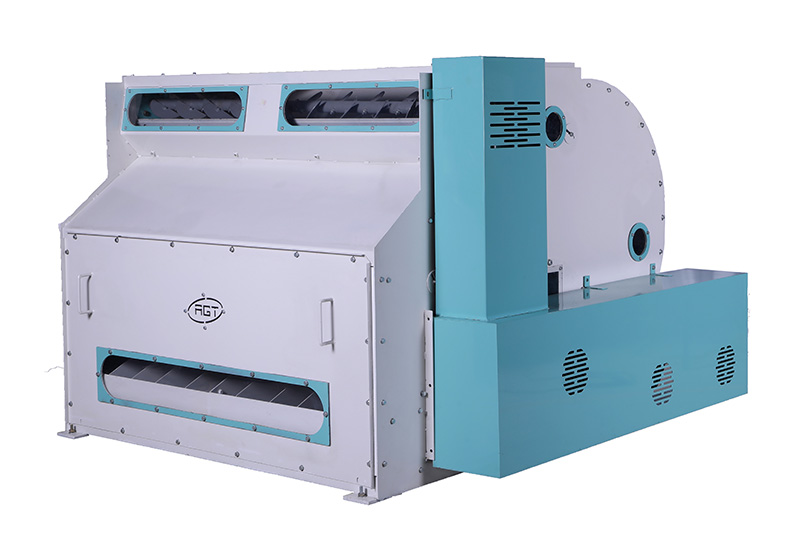

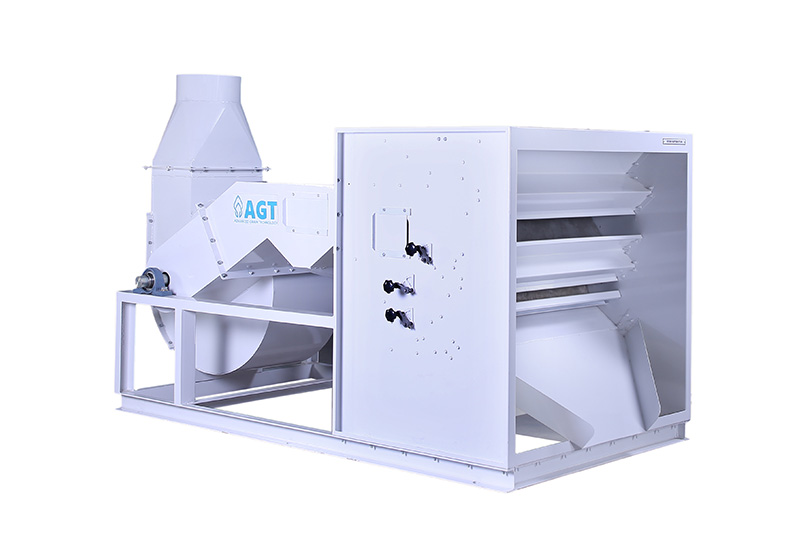

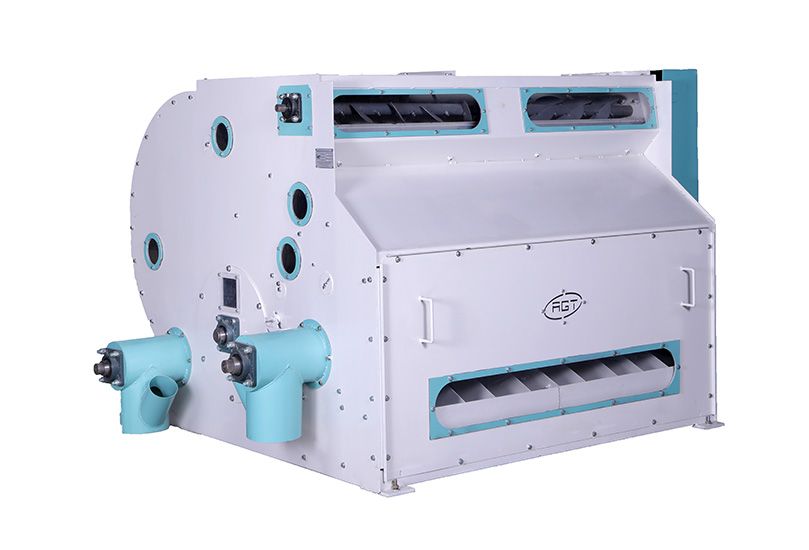

Husk Aspirator

Product processing / development at AGT goes beyond simply improving and revamping existing products line.

  1. Produts
  2. Husk Aspirator

Husk separator is a ‘closed circuit chamber’ used to aspirate husk & light particles from the mix of brown rice, paddy and husk fed from the Pneumatic Sheller. A power full, dynamically balanced in-built fan blows the air across the mix to take away loose husk &light weight particles. This machine is specially designed to separate husk from de-husked brown rice & un-husked paddy.

Working Principle:

  1. Mixture of brown rice, paddy & husk is fed from pneumatic Sheller (mounted on top of the husk aspirator) and spread evenly with controlled flow across the width of the aspirator.
  2. The built-in blower which is dynamically balanced provides steady stream of air to separate husk and light particles from the mix as it falls. The air pressure can be controlled by adjusting the flaps.
  3. Husk and light particles are blown away and collected in screw conveyor tube and moved to a side outlet and discharged into a husk blower and transported for further use.
  4. Heavy particles like brown rice and paddy are collected and are discharged from another outlet into the elevator for further processing.

Suitable for:

Rice - Non-Basmati - Short, Medium & Long Grains

Rice - Basmati ◦ Raw ◦ Steamed ◦ Parboiled Boiled

Construction

  • Mild steel with laser cut structure with bolted Construction.
  • Stainless Steel internal parts for long life.

Salient features

  1. Closed Circuit Chamber provides better efficiency and less losses.
  2. Uniform distribution of mix at inlet by screw spreader.
  3. Stainless steel blower which is dynamically balanced.
  4. Screw Conveyor with anti clogging safety system for trouble free operation.
  5. Adjustable flap for air flow speed and pressure control for separation.
  6. Ware parts are easily available.
  7. Low noise level during operation.
